Tunable RF Filters: Advantages, Disadvantages and Market Applications

---

Abstract

Tunable Radio Frequency (RF) filters are essential components in modern communication, defense, and electronic warfare systems. These filters provide dynamic frequency selectivity, enabling efficient spectrum management and interference mitigation. This white paper explores the advantages and disadvantages of tunable RF filters, their primary markets, and key end-use applications, as well as technological advancements driving their development.

1. Introduction

Radio Frequency (RF) filters are critical components in wireless communication, radar, and signal processing applications. These filters selectively allow certain frequency bands to pass while attenuating unwanted signals. Traditionally, fixed-frequency filters are used to perform this function, but as wireless systems have become more complex, the need for adaptable solutions has grown. Tunable RF filters, as opposed to fixed-frequency filters, offer flexibility by dynamically adjusting their frequency response to optimize performance in varying operational environments. This adaptability is particularly beneficial in increasingly congested and contested electromagnetic spectrum domains.

Tunable RF filters may find applications in Jamming Mitigation, Communications Receivers, Electronic Support Measures (ESM), Receiver Protection, TR Modules, Electronic Warfare, LTE Co-Channel Interference, 5G SATCOM C-Band interference and 5G Aircraft Radio Altimeter interference.  These applications span numerous industries, from commercial telecommunications to military and aerospace systems. They enable dynamic spectrum allocation, enhance interference mitigation, and reduce the hardware footprint by replacing multiple fixed-frequency filters with a single, reconfigurable component.  However, these advantages come with trade-offs, including complexity, cost, and potential performance limitations. This paper explores these factors in depth, alongside the primary markets that benefit from tunable RF filters.

2. Advantages of Tunable RF Filters

2.1 Frequency Agility and Adaptability

One of the most significant advantages of tunable RF filters is their ability to dynamically adjust their frequency range. Figures 1 through 3 depict the typical insertion loss, return loss and phase performance, respectively, of a notch (bandstop) filter over a tuning range of 625 MHz to 950 MHz.

The flexibility to dynamically adjust a filter’s center frequency allows for:

• Real-time spectrum optimization: Tunable filters enable systems to adapt to changing electromagnetic environments by selecting appropriate frequency bands in real time.
• Multi-band operation: Unlike fixed filters, which are designed for specific frequencies, tunable RF filters allow a single device to operate across multiple bands.  Typical tunable filters operate from 100 MHz to around 10 GHz.
• Co-located devices: In environments with numerous wireless devices, tunable filters help manage frequency allocations and reduce interference.

2.2 Spectrum Efficiency and Interference Mitigation

Spectrum congestion is an increasing challenge in both commercial and defense applications. Tunable RF filters help optimize spectrum usage through:

• Adaptive filtering: By selectively attenuating unwanted signals, tunable filters improve signal integrity and reduce the impact of adjacent channel interference.
• Jamming resistance: In military and electronic warfare applications, tunable filters allow for agile frequency hopping, improving resilience against jamming and electronic attacks.
• Cognitive radio applications: Cognitive radio systems benefit from tunable filters to dynamically access underutilized spectrum bands without causing interference.

2.3 Size, Weight, and Power (SWaP) Optimization

• Reduction in component count: A single tunable filter can replace multiple fixed-frequency filters, simplifying system design.
• Lower power consumption: Optimized tuning mechanisms can minimize power requirements, which is crucial in battery-powered or space-constrained applications.

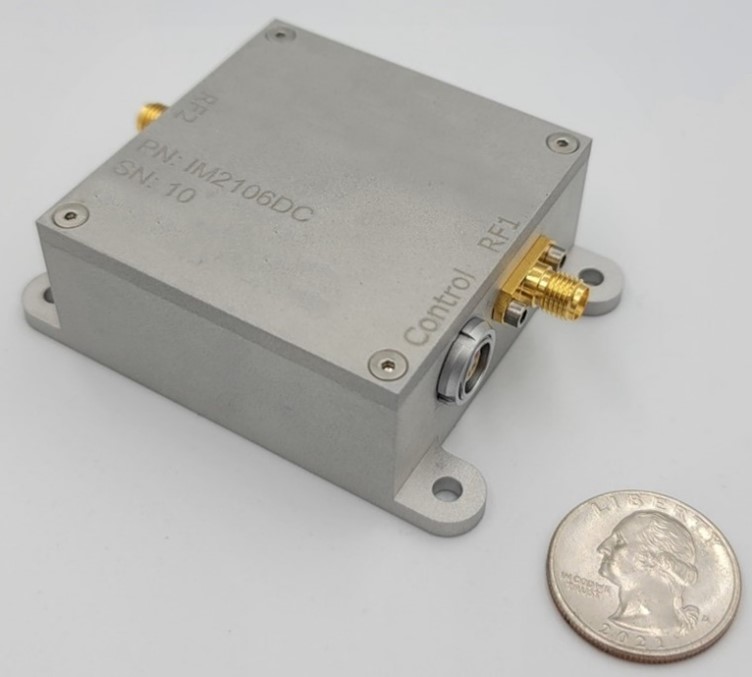

• Compact design: Advances in tunable filter materials and technologies, including MEMS (Micro-Electro-Mechanical Systems) and Si, GaAs or BST varactor-based solutions, have led to miniaturized designs suitable for modern communication systems.  Figure 4 shows a typical tunable notch RF filter.

2.4 Cost Efficiency

• Reduced hardware requirements: Instead of designing and manufacturing multiple fixed-frequency filters, manufacturers can use a single tunable filter, reducing overall system costs.
• Long-term operational savings: The ability to reconfigure frequencies without hardware changes reduces the need for frequent replacements or upgrades.
• Supply chain benefits: With fewer unique components required, procurement and logistics are streamlined.

3. Disadvantages of Tunable RF Filters

3.1 Complexity and Design Challenges

• Somewhat complicated tuning circuits: Electronic tuning using varactors, MEMS, or ferroelectric materials requires sophisticated control circuits.  Figure 5 shows the typical block diagram for a tunable filter.

• Nonlinearities in tuning response: Some tuning elements exhibit non-linear behavior, affecting performance stability.
• Temperature sensitivity: Tuning accuracy can be impacted by environmental conditions, requiring additional compensation circuits.

3.2 Linearity and Performance Trade-offs

• Insertion loss concerns: Tunable filters typically introduce higher insertion loss compared to fixed filters, impacting overall system efficiency.
• Filter selectivity: While tunable, these filters may have broader passbands than fixed filters, affecting adjacent channel rejection performance.
• Distortion and harmonics: In some designs, tunability may introduce unwanted nonlinearities, requiring additional signal conditioning.

3.3 Response Time and Tuning Speed

• Latency in tuning: Electronic and mechanical tuning mechanisms may not always provide instantaneous frequency changes, limiting applications requiring ultra-fast switching.  Sub microsecond (< 1µs) tuning times, however, have been demonstrated.
• Stabilization time: Some technologies require brief stabilization periods after tuning, which can impact real-time adaptability.

3.4 Manufacturing and Reliability Considerations

• Higher initial costs: Due to the complexity of tunable filter designs, the upfront manufacturing cost is higher than traditional fixed filters.
• Reliability of moving parts: In MEMS-based or mechanically tuned filters, longevity can be a concern due to wear and tear over time.
• Calibration and maintenance: Regular recalibration may be necessary to maintain optimal performance, especially in precision applications.

4. Market Segments and Applications

4.1 Telecommunications and 5G Networks

• Dynamic spectrum allocation: As 5G networks expand, tunable filters help optimize frequency usage based on network load.
• Adaptive base stations: Base stations equipped with tunable RF filters can adjust frequency bands to accommodate changing user demands.
• Interference mitigation in dense environments: Urban and high-density areas benefit from tunable filters that dynamically suppress interference.

4.2 Aerospace and Defense

• Electronic Warfare (EW): Tunable filters enable frequency agility, enhancing countermeasure systems.
• Military radar systems: Adaptive filtering allows radar to operate efficiently in contested electromagnetic environments.
• Secure communications: Tunable filters enhance encryption and anti-jamming capabilities for secure military networks.

4.3 Satellite Communications

• Frequency agility in space: Satellites benefit from tunable filters to dynamically manage signal routing and avoid interference.
• Multi-mission satellites: A single satellite can support multiple communication standards using tunable RF filters.

4.4 Test and Measurement Equipment

• Flexible RF testing: Test equipment manufacturers integrate tunable filters for versatile, multi-band testing solutions.
• Spectrum analyzers and signal generators: These devices rely on tunable filters for precise frequency control in laboratory and field environments.

4.5 Internet of Things (IoT) and Wireless Sensor Networks

• Adaptive frequency management: Tunable RF filters help IoT devices operate efficiently in shared spectrum environments.
• Reduced power consumption: Efficient frequency selection minimizes unnecessary signal processing, prolonging battery life.

4.6. Software Define Radios

• Reconfigurable Frequency Response: Tunable filters in Software-Defined Radios (SDRs) play a crucial role in enabling selective frequency filtering. They allow the SDR to adapt to various frequencies and radio functions, which is essential in SDR’s flexible environment.
• Improved system performance in ultra-wideband RFSoC applications: New ultra-wideband radio frequency system-on-chip (RFSoC) products provide multiple ADC and DAC channels for SDR applications with some RFSoC products offering sampling rates up to 64 GSPS. The wide instantaneous bandwidth of these RFSoC devices makes them particularly susceptible to interference. Tunable and reconfigurable filters play a crucial role in preserving RFSoC device signal integrity and dynamic range.

5. Emerging Trends and Future Developments

• AI-driven spectrum optimization: Machine learning and artificial intelligence are being integrated to optimize filter performance in real-time.
• Advanced packaging: Research continues to reduce the size of the filters, leading to integrated modules of chip-scale filters for Ku band frequencies and above.
• Ultra-wideband tunable filters: Research is focusing on expanding the tunability range to support next-generation wireless systems.
• Advanced materials for improved performance: Innovations in tunable dielectrics, magnetostatic wave resonators, ferromagnetic materials (YIG) and MEMS technology are enhancing filter efficiency, reconfigurability and durability. Material development, and novel fabrication techniques are also extending tunable filter performance beyond the microwave frequency region and into mmWave applications.
• Advanced filter architectures: Research into unique filter design methods and architectures are enabling multiple simultaneous tunable filter responses, providing intrinsic filter switching, reducing filter footprints, providing muti-levels of reconfigurability, and enabling real-time switching between bandpass and bandstop responses in a single filter design.

6. Conclusion

Tunable RF filters provide significant advantages in terms of frequency agility, spectrum efficiency, and SWaP optimization. However, their adoption comes with challenges related to complexity, performance trade-offs, and cost. As technology evolves, continued innovations in materials and tuning mechanisms will further enhance the capabilities and applications of tunable RF filters in critical industries.

---
